Luque ^[1] was the first to introduce sublaminar wiring (SLW) for posterior stabilization of the spine in 1984. In Luque’s method, wires were combined with two different rods. The Hartshill system was later developed by Dove in 1986 to improve rotational stability by combining the two Luque rods into a rectangular shape ^[2]. It is attached to the spine in a rectangular pattern with two wire loops at each level. Comparing this configuration to the first single-loop approach, it has shown better biomechanical performance ^[3].

Sublaminar wires are no longer widely utilized due to advances in spinal instrumentation and surgical methods ^[4]. Major worries about them are neurological issues such as dural tears ^[5], anxiety about the long-term negative effects on the spinal cord, and wire and rod fractures – insufficient corrective pressures.

Classic posterior instrumentation relies solely on the purchase of posterior column structures, whereas pedicle screws allow for direct control of all three columns.

The revision involving the removal of the Hardshell rectangle and SLW is equally complex, with the possibility of dural rupture and wire breakage in the canal. As vital as proper sublaminar wire insertion is, its removal is equally challenging, with the same challenges and hazards. With the newer instrumentation available such as pedicle screws, the knowledge of the Hartshill rectangle and sublaminar wires becomes absolute. Revision spine surgeries increase with the latest advent of instrumentation. The technique for removing Hartshill was necessary.

We are illustrating the challenges and methods of removing Hartshill and sublaminar wires and revising them with pedicle screw implants under O-arm guidance.

Case Report 1

A 46-year-old female who was injured on her back while falling from her scooter presented with acute back pain (Visual Analog Scale 8/10) and difficulty in changing posture from supine to sitting. Left-sided hip flexion weakness 3/5 with left lower limb radicular pain in the upper thigh region. Bladder and bowel functions were normal.

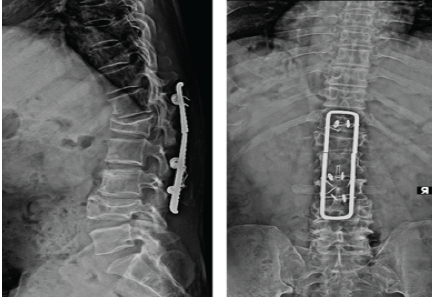

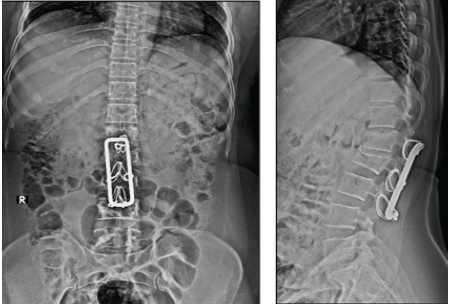

We took a radiograph (Fig. 1), which indicated a previous L2–L4 Hartshill with sublaminar wires operation 15 years ago for an acute L2 burst fracture. At that time, the patient had left-sided knee extension and ankle dorsiflexion weakness 3/5, with left lower-limb radicular pain. After Hartshill with sublaminar wire, the patient recovered. Due to unsatisfactory visibility in magnetic resonance imaging (MRI) with Hartshill in situ, we chose computed tomography (CT) myelography (Fig. 2), which revealed an L1 burst fracture.

With these investigations, the diagnosis of L1 burst fracture with the previous implant in situ was confirmed. Routine laboratory investigations were normal, and due to a history of trauma, the fracture was considered to be of traumatic origin. The patient was offered treatment in the form of revision surgery with the removal of the implant and instrumented fusion.

Surgery

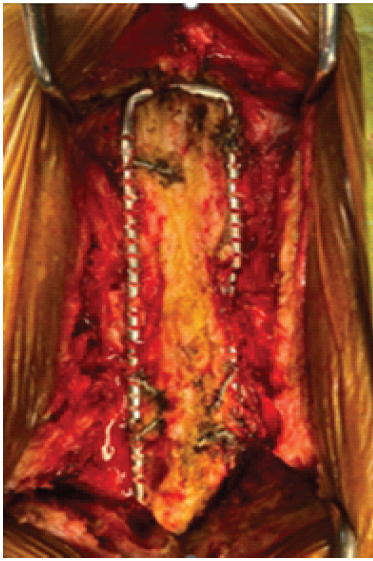

The standard midline approach was used over the previous incision, and the spine was exposed. There were a lot of adhesions and fibrosis because of the previous surgery, which was carefully dissected. Here, we cannot use cautery over the stainless steel implant. We have to expose the rods from adherent tissue. The Hartshill rectangle was exposed (Fig. 3a), and the laminar wires looped over the implant were cut. We have to cut the laminar wires just below the knot, or if we cannot access the part below the knot, we have to unwind it to remove it. If we forcibly try to remove the wire, it will cause iatrogenic dural damage. Hartshill rectangle removed. Inside the canal, it was discovered that the L2 and L3 sublaminar wires were broken (Fig. 3b). Sublaminar wires have now been confirmed to be located beneath the lamina with the aid of O-arm navigation. Burr was used to carefully remove the window that was created over the wires. The O-arm is very useful for removing the wires; otherwise, we would have to perform a laminectomy, which was a challenging procedure since epidural fibrosis develops over time when sublaminar wires are present. There is a potential that a dural tear could occur during a laminectomy. After the implant was removed, all of the tissues impacted by Hartshill’s metallosis were likewise removed. Rods were fastened after the pedicle screw from D12 to L3 was placed. Over the contoured rods, we have observed a nice reduction in fracture (Fig. 3c).

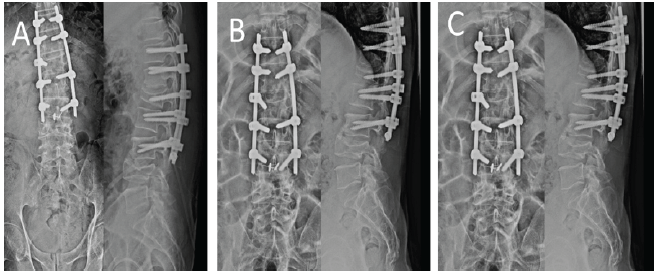

The post-operative patient was relieved of back pain and neurology was improved. The patient is walking with support on post-operative day 1 (POD1). Follow-up after 3 months, 6 months, and 12 months shows a well-maintained curve (Fig. 4).

Case Report 2

A 50-year-old male presented with mid and lower back pain with spasticity and weakness in both lower limbs. The patient had myelopathic gait, with Nurick grade 4. Reflexes were hyper, and bowel/bladder not involved. Plantar reflexes were upward.

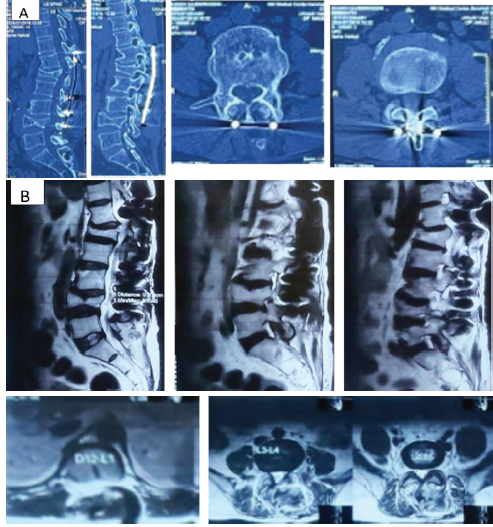

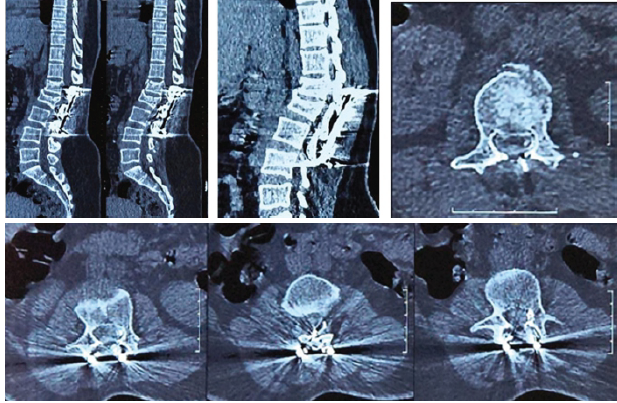

Radiographs were taken (Fig. 5), and they revealed that the procedure was previously performed from D12 to L4 with Hartshill rectangle and spinous process wires, with burst fractures of L1 and L4, implant back out, and breakage. An MRI and CT scan were done (Fig. 6), which showed cord compression at the D12 level due to implant breakage and kyphotic deformity at the proximal junctional level. The patient explained about the surgical intervention in the form of implant removal and instrumented fixation with decompression.

Surgery

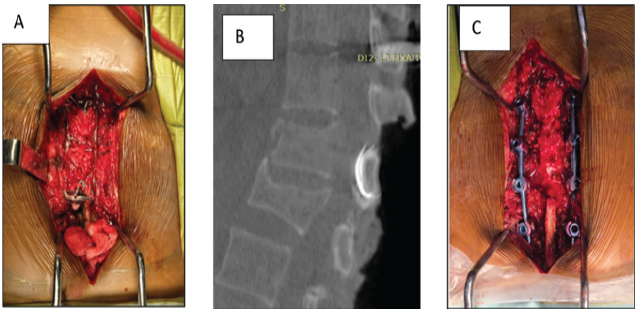

Midline incision is placed over the previous incision. Implant exposure is done without the use of cautery. Spinous process wires were removed as discussed in the previous case, but L4 vertebrae laminar wire failed to be removed. Hartshill rectangle was found broken (Fig. 7) and explanted. Pedicle screws were inserted under O-arm navigation from D10 to L4. Dorsal decompression was done. Rods were contoured and fixed to the screws. L4 sublaminar wire was tried to remove but was adherent with the fibrosis which will eventually lead to neurological complications so left in situ.

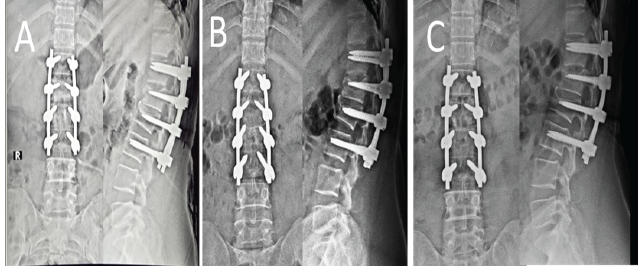

Postoperatively, gradually shifted to neurorehabilitation. The patient was able to walk with support from POD1 without any difficulty. At 3 months, the patient was able to walk without support, and lower limb power improved. The patient was followed up for 3 months, 6 months, and 9 months. Follow-up showed a well-maintained curve (Fig. 8).

Kindly review the sentence as it is unclear.

Pedicle screw fixation of spinal fractures has supplanted sublaminar wire procedures in many facilities. Biomechanical studies have suggested that such systems provide greater stability than the Hartshill system, especially in rotation ^[6]. Difficulties in removing the Hartshill rectangle have not yet been studied in depth.

In vitro, corrosion is known to occur with stainless-steel implants ^[7,8,9,10]. It is seen less commonly with cobalt-chromium alloys and rarely with titanium. Corrosion may weaken the metal, and the late failure of segmental wires may be caused by a combination of repeated cyclical loading and fretting corrosion at the rod-wire junction. The potential for epidural fibrosis with passing the sublaminar wires in the canal may occur.

All these complications may further increase the risk of neurological damage during the removal of the sublaminar wires. We incorporated O-arm navigation to accurately extract the sublaminar wires, which would otherwise lead to significant bony destruction and harm to the neurological structures.

The removal of Hartshill rectangles and sublaminar wires during revision spine surgery is technically demanding due to fibrosis, implant breakage, and the risk of dural or neurological injury. Our experience demonstrates that O-arm navigation can facilitate safe and precise wire removal while minimizing bony destruction and potential complications.

Navigated removal of legacy spinal implants combined with pedicle screw fixation provides an effective and safer approach for complex spinal reconstructions in patients with previous Hartshill instrumentation.
